GLIS-3000 珠寶發光成像分析儀
GLIS-3000 珠寶發光成像分析儀，可以對批量厘鉆、鑲嵌鉆石首飾進行快速判斷和篩選，由于天然鉆石與合成鉆石的紫外熒光發光圖樣和磷光圖樣有明顯的區別，該儀器內置光源激發鉆石發光，拍攝和記錄被測樣品的熒光和磷光圖像，再根據所記錄的圖像進行分析，找出有問題鉆石的具體位置。
GLIS-3000 GEM Luminescence Imaging System can help the user to judge batches of small diamonds quickly (as small as 0.001 carat) and mounted diamond. The Ultraviolet fluorescence image and the phosphorescence image of natural diamond and synthetic diamond are different. GLIS-3000 excites diamond to becomes luminescence through the built in Ultraviolet light source, captures and records the fluorescence and phosphorescence image of the sample, and we can find out the position of the suspected diamonds with problem by analyzing the relevant images.
The fluorescence and phosphorescence of diamond:
When exposed to UV light, diamond can emit different intensity of the blue visible light, which is fluorescence. If we remove the UV light source, diamond can still emit visible light, this is phosphorescence.
>>最大測量面積可達10cm×7cm
Measurement area up to 10cm*7cm
>>可同時測量熒光和磷光
The simultaneous measurement of fluorescence and phosphorescence
>>可批量同時檢測，可測量裸石和鑲嵌成品
The simultaneous measurement of batch diamond, the ability of measuring the bare stone and inlaid diamond
>>可測量任意形狀和大小，最小可檢測一厘的鉆石
The ability of measuring diamond with any shape and size, the smallest size of measurement is 0.001 carat.

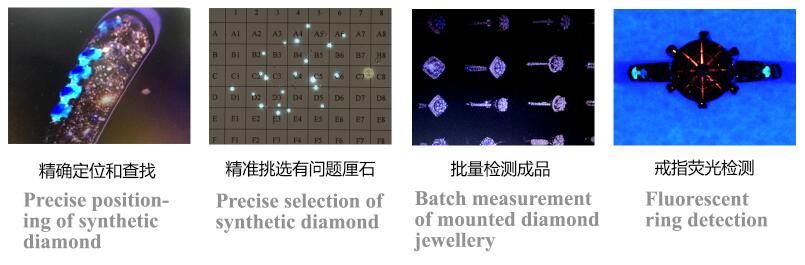

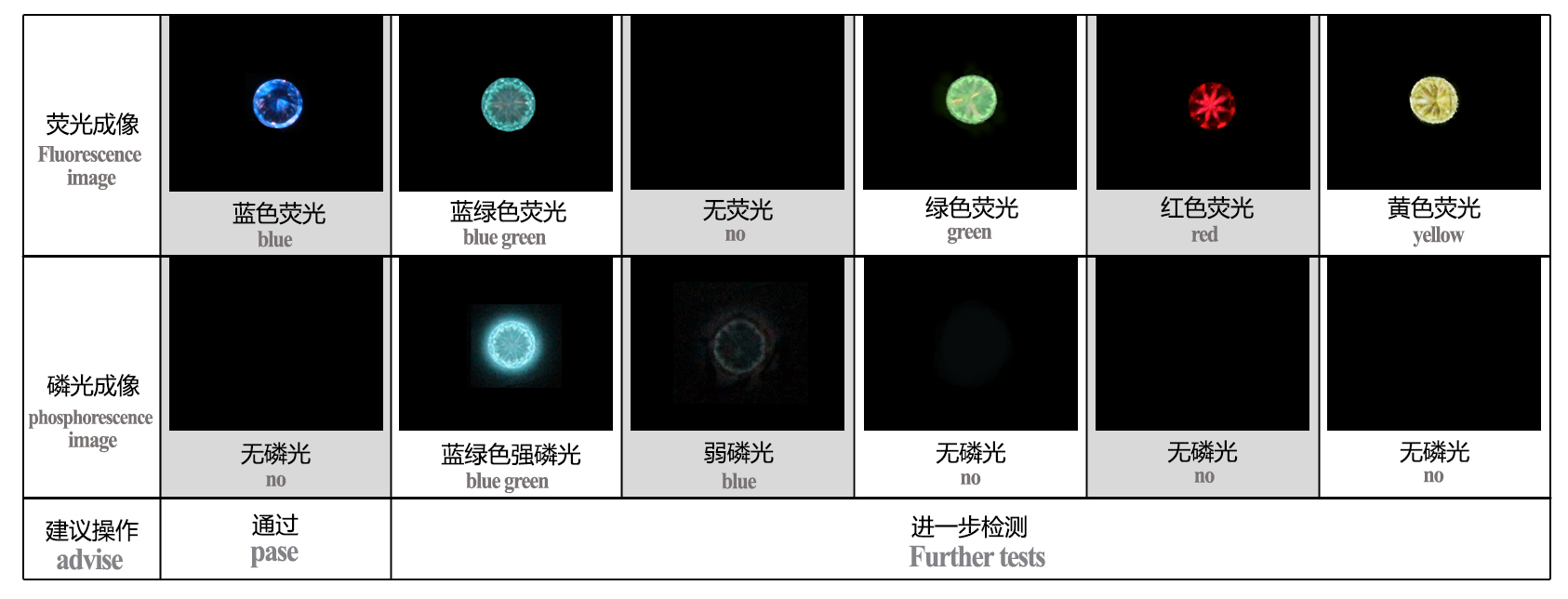

成像分析

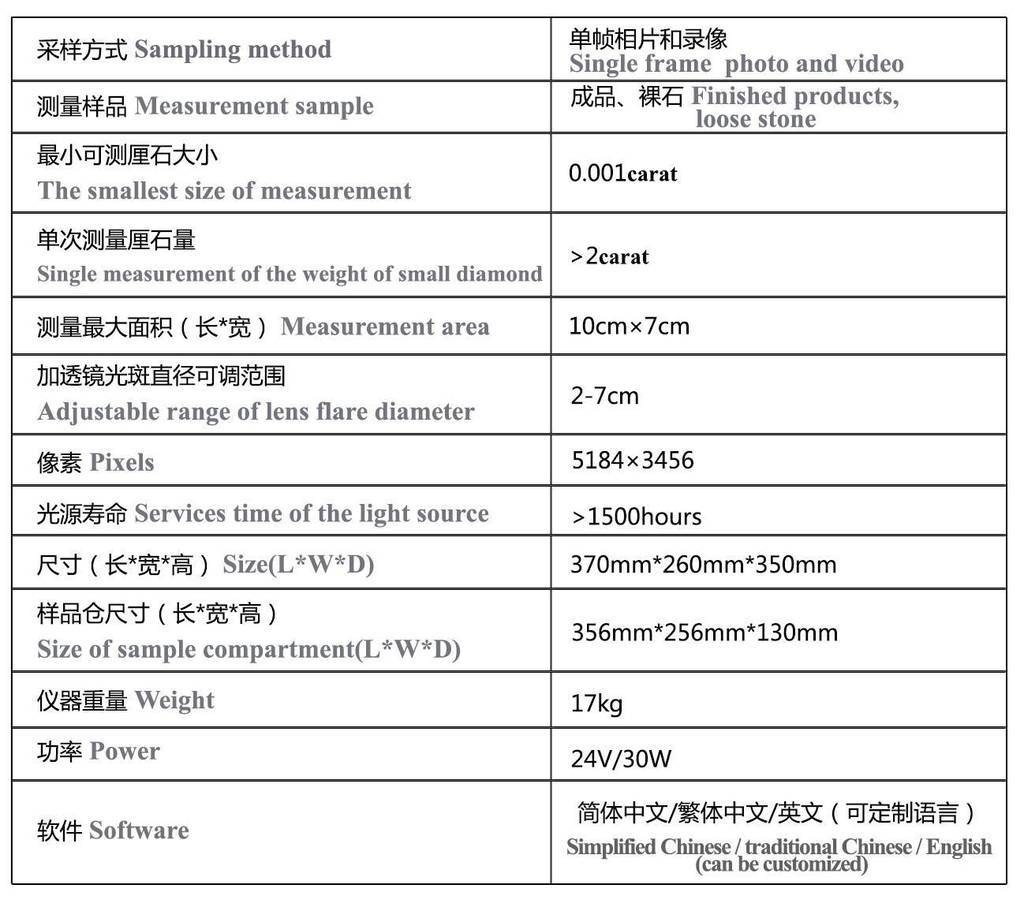

技術參數
|
